CNC wire saw | High-precision cutting machine for corrugated paper
This high-efficiency CNC cutting equipment, specially designed for packaging materials such as corrugated paper and honeycomb cardboard, provides one-stop cutting solutions for complex shapes in industries such as packaging, cultural and creative products, and pet supplies, with high precision, high flexibility, and high stability. With servo-driven CNC control, dual-station processing and a maximum cardboard cutting thickness of 460mm, the machine provides a flexible solution for both custom shape processing and batch production.
Send us your cardboard thickness, product dimensions and required cutting shape for a suitable machine configuration and quotation.
Main Characteristics
Servo-driven CNC control enables the machine to follow complex cutting paths, including curves, irregular contours, hollow shapes and narrow corners.
It is suitable for customized products where conventional straight cutting methods cannot achieve the required profile.

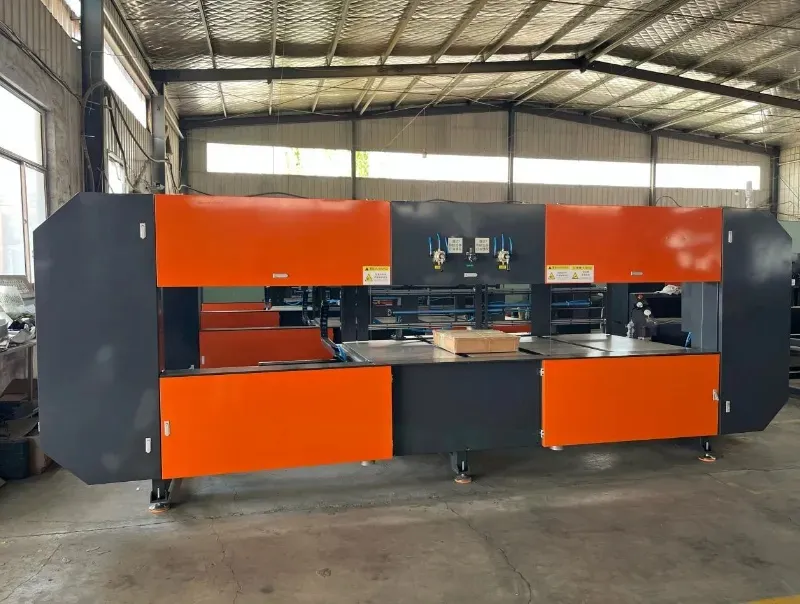

The machine uses a dual-station synchronous processing structure, allowing two workpieces to be cut simultaneously.
This improves production efficiency for manufacturers processing repeated shapes or larger batch orders.
With a specified maximum cardboard cutting thickness of 460mm, this corrugated cardboard wire saw machine is suitable for thick or stacked cardboard structures that require profile cutting.
The wire saw cutting process minimizes material compression, helping reduce deformation and delamination during cutting.
The resulting edges are smooth and burr-free, reducing the need for secondary finishing.
In addition to corrugated cardboard, the machine is also compatible with:
Honeycomb cardboard
EVA foam
Packaging cushioning materials
Other compatible board materials
Customized extended cutting strokes are available according to different production requirements.
Description
| Cutting cardboard thickness | Maximum 460mm |
| Maximum cutting size | 500mm*1500mm |
| Minimum cutting size | 30mm*800mm |
| cutting speed | 800mm-2000mm/minute, depending on the thickness and shape of the cardboard |
| power supply | 380V（Customizable） |
| power | Maximum 4KW |
| gas source | 0.6-0.8Mpa |
| Fixture air pressure | 0.4-0.6Mpa |
| Saw blade tension air pressure | 0.4-0.6Mpa |
| Overall dimensions | 2500mm*3400mm |
| Total weight | About 1500KG |
| Saw blade size | Length 4360mm, wire diameter 1.0mm |
| The above specifications and parameters are for reference only | |
1. High-precision CNC cutting, easily handles complex shapes. Driven by an imported servo motor, it can achieve 360° no dead angle curve cutting, hollow pattern processing, and narrow corner processing. Whether it is the inner lining of irregular gift boxes, custom corrugated support, or creative cat scratching board shape, it can reproduce the design drawings 1:1, completely eliminating the burrs and crookedness problems of traditional manual cutting.
2.The dual-station high-efficiency design doubles production capacity. The equipment adopts a dual-station synchronous processing structure, capable of cutting two workpieces simultaneously, increasing efficiency by 100% compared to single-station models, easily handling batch order production needs. The cutting process minimizes material compression, effectively preventing corrugated paper deformation and delamination, resulting in smooth, burr-free cuts that eliminate the need for secondary polishing, significantly shortening the production cycle.
3. High adaptability, effortless processing in various scenarios. It can not only cut various corrugated cardboard types, but is also compatible with honeycomb cardboard, EVA foam, and other materials, making it widely applicable in packaging linings, cushioning materials, pet supplies, cultural and creative models, architectural decoration, and many other fields. The equipment supports customized extended cutting strokes to meet the processing needs of thick materials and adapt to diverse production scenarios.
Suitable for cutting different corrugated cardboard products, especially applications requiring irregular profiles, curves or thick stacked structures.
The machine can also be used as a honeycomb cardboard cutting machine for custom-shaped honeycomb packaging structures, cushioning components and related board products.
Compatible EVA foam materials can also be processed, expanding the machine's use in cushioning, protection and custom insert applications.
Suitable for cutting different corrugated cardboard products, especially applications requiring irregular profiles, curves or thick stacked structures.
The machine can also be used as a honeycomb cardboard cutting machine for custom-shaped honeycomb packaging structures, cushioning components and related board products.
Compatible EVA foam materials can also be processed, expanding the machine's use in cushioning, protection and custom insert applications.
The CNC corrugated cardboard cutting machine can be used to manufacture:
Irregular gift box liners
Custom packaging inserts
Corrugated support structures
Cushioning supports
E-commerce packaging accessories
Protective cardboard components
The ability to process irregular profiles makes the machine particularly useful for customized packaging projects.
Corrugated cardboard cat scratching products often require curves, hollow structures and customized external profiles.
This machine can be used as a cat scratching board cutting machine for processing different scratcher shapes and pet product components.
Typical applications include:
Cat scratching boards
Shaped cat scratchers
Corrugated pet beds
Pet bed linings
Customized pet product components
The flexible CNC shape cutting capability is also suitable for:
Architectural models
Figurine stands
Creative paper art
Display structures
Decorative cardboard shapes
Different cardboard products require different cutting conditions.
The required machine configuration depends on factors such as:
Cardboard material
Material thickness
Workpiece dimensions
Cutting shape
Production quantity
Required cutting speed
Product application
For manufacturers processing thick corrugated board, honeycomb board or custom-shaped products, we can evaluate your application and recommend a suitable cutting configuration.
Customized extended cutting strokes are also available to meet different processing requirements.
Machines are supplied directly from the manufacturer, helping us provide technical communication and customized machine configurations based on actual production requirements.
Machine dimensions and functional configurations can be customized according to your material, product size and cutting requirements.
The rugged machine design is developed for stable long-term operation and consistent cutting performance in industrial production environments.
On-site installation, commissioning and operation training services are available to support machine setup and production.
Instead of recommending equipment only by machine model, we can evaluate your cardboard thickness, finished product shape, dimensions and production requirements to provide a more suitable cutting solution.

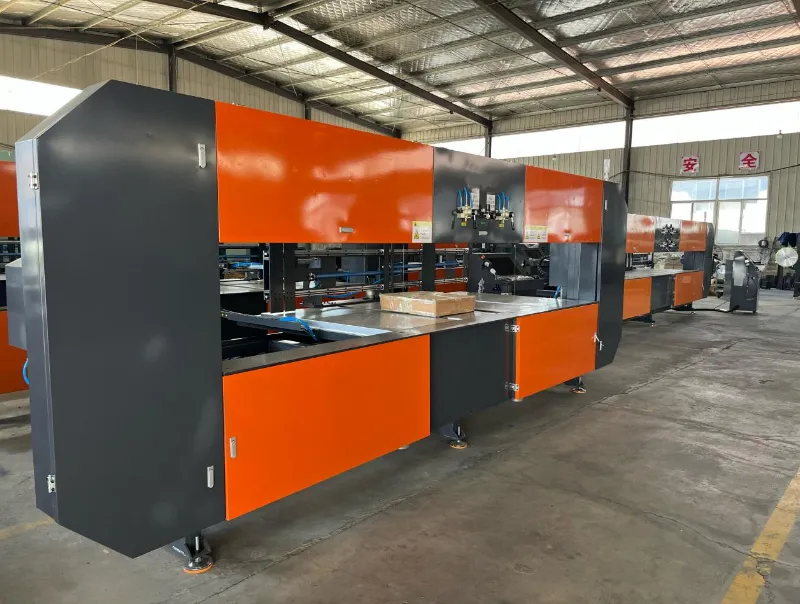

A CNC corrugated cardboard cutting machine is industrial equipment used to cut corrugated board into specified dimensions or customized profiles through numerical control. This vertical wire saw model is particularly suited to thick cardboard and irregular shape cutting.
The specified cutting cardboard thickness is Maximum 460mm.
Yes. The CNC-controlled system can be used for curve cutting, hollow pattern processing, narrow corners and other irregular profiles.
Yes. In addition to corrugated cardboard, the machine is compatible with honeycomb cardboard and can be used for custom-shaped honeycomb packaging and cushioning components.
Yes. The machine can be used as a cat scratching board cutting machine for processing corrugated cardboard scratchers, shaped scratching products and related pet product components.
The specified maximum cutting size is 500mm*1500mm.
The specified cutting speed is 800mm-2000mm/minute, depending on the thickness and shape of the cardboard.
The specified saw blade size is Length 4360mm, wire diameter 1.0mm.
Yes. The power supply is listed as 380V（Customizable）, and customized sizes, extended cutting strokes and functional configurations can be discussed according to production requirements.
Send us your cardboard material, thickness, workpiece dimensions, finished product shape and required production quantity. We can evaluate your application and recommend a suitable cutting configuration.

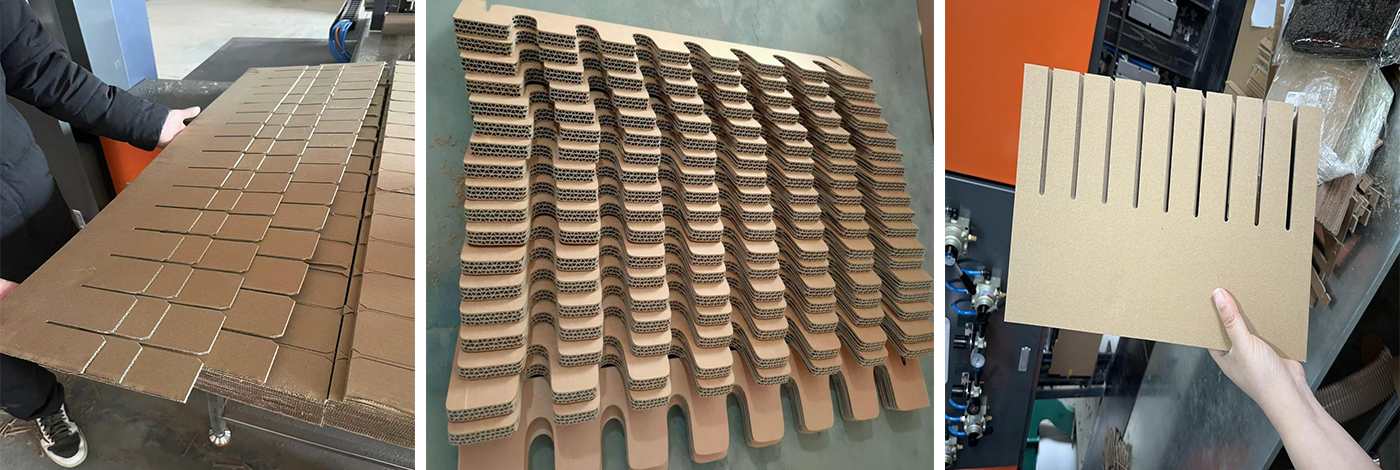

Cut cardboard display
Customized Products
We offer comprehensive customization services that cover appearance, functionality, and configuration – please feel free to share your specific requirements.
