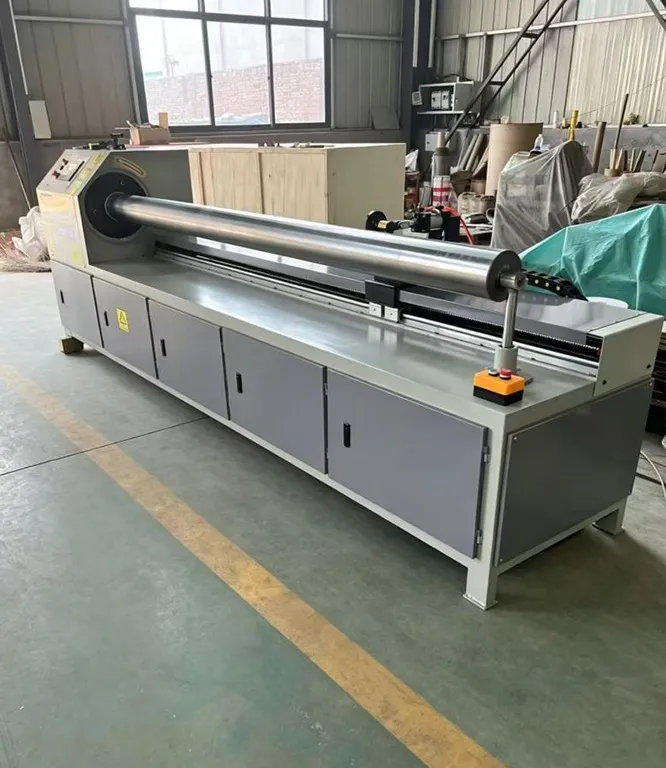

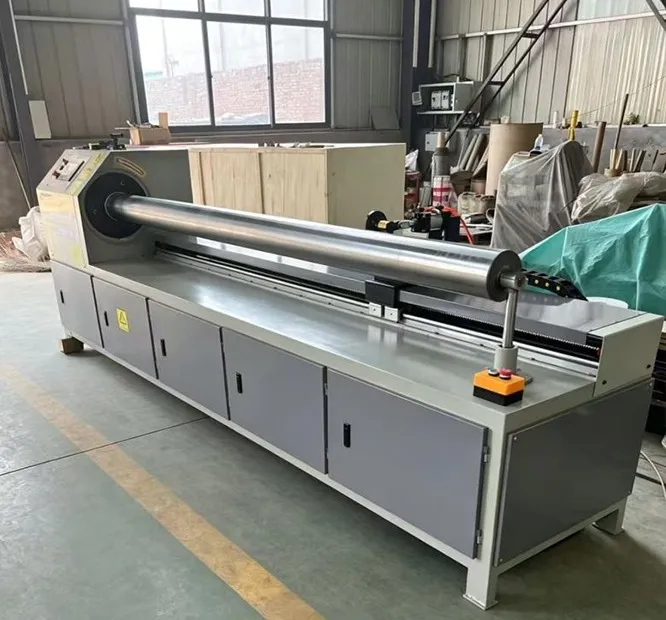

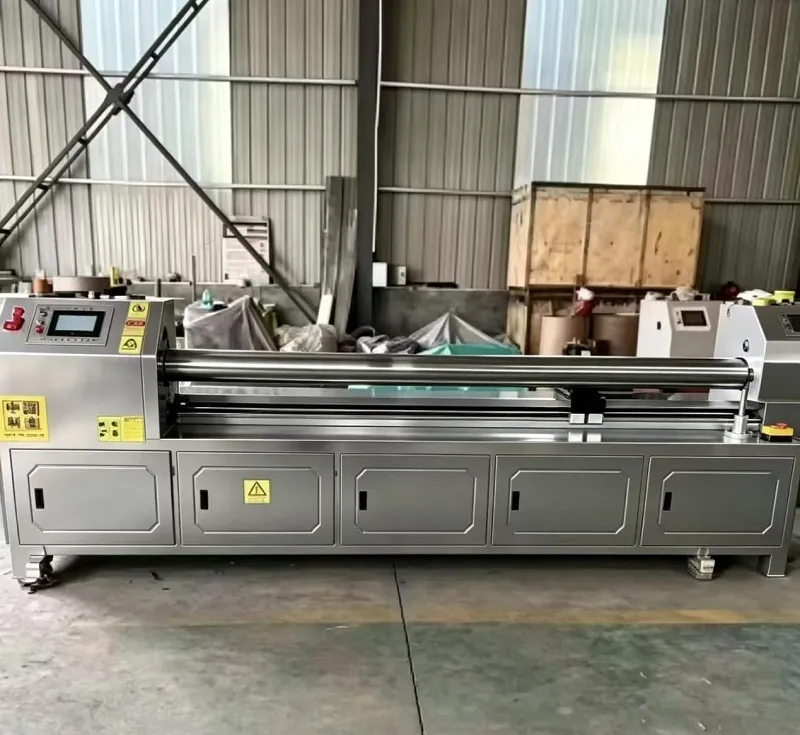

Paper Tube Precision Cutting Machine

Servo-controlled paper tube cutting equipment for accurate, smooth and efficient paper core processing

Our Paper Tube Precision Cutting Machine is designed for fixed-length cutting, multi-segment cutting and trimming of paper tubes and paper cores. Combining servo numerical control with pneumatic cutting and a single round knife, the machine delivers consistent cutting performance for industrial paper tube production.

It is suitable for manufacturers processing paper tubes used in adhesive tape, film, packaging, printing, paper converting and other roll-based industries.

For manufacturers looking for a reliable paper tube cutting machine or paper core cutting machine for batch production, this model provides a practical balance of cutting precision, production efficiency and flexible length control.

Inquire Now

Product Specifications

Core Product Advantages

1. High-precision cutting produces smooth, burr-free cuts. Equipped with an industrial-grade system and servo motor-driven positioning, it achieves high cutting accuracy, enabling fixed-length cutting and multi-segment cutting. The cuts are smooth and burr-free, without indentations, eliminating the need for secondary polishing and significantly improving the quality of finished paper tubes, thus meeting the needs of high-end customers.

2. Automated and efficient production, adaptable to bulk orders. The equipment supports automatic feeding, automatic positioning, and automatic cutting, with cutting efficiency 3-5 times higher than traditional manual pipe cutting machines, easily handling large-volume order production. It also supports one-click setting of multiple different cutting lengths, eliminating the need for repeated adjustments and making production more flexible.

3. Multifunctional adapter, compatible with various specifications of paper tubes. It can process various types of paper tubes, such as tape paper tubes, film paper tubes, packaging paper tubes, toilet paper tubes, etc.

4. Robust, durable, and easy to maintain, reducing long-term costs. The machine body is made of thickened steel, and key components are made of high-quality alloy materials, which are corrosion-resistant, non-deformable, and ensure stable and reliable long-term operation. The cutting blades are made of high-hardness materials, have a long service life, are easy to replace, and have low maintenance costs, effectively reducing the company's long-term production investment.

Applicable Scenarios

Adhesive Tape and Film Cores

Suitable for cutting paper cores used for:

• BOPP tape

• Adhesive tape

• Stretch film

• Cling film

• Protective film

• Other roll materials

For tape and film manufacturers, consistent core length helps support downstream rewinding, slitting and packaging operations.

Packaging Paper Tubes

The machine can process paper tubes used for:

• Express packaging

• Gift paper cans

• Inner packaging tubes

• Protective paper tubes

• Industrial packaging cores

Printing and Paper Converting

Suitable for cutting:

• Paper roll cores

• Printing roll paper tubes

• Paper converting cores

• Industrial winding cores

Toilet Paper and Tissue Cores

The machine can also be used for cutting paper tubes used in tissue and toilet paper production according to compatible tube specifications.

Why choose our CNC paper tube precision cutter?

Factory Direct Supply

As a paper converting equipment manufacturer, we provide direct machine supply and can discuss customized configurations according to your production requirements.

Custom Paper Tube Cutting Solutions

Machine configuration can be adapted according to factors such as:

• Paper tube size

• Required cutting length

• Cutting stroke

• Product specification

• Production capacity

• Functional configuration

Designed for Stable Production

The machine is built for repeatable industrial cutting, helping reduce interruptions caused by unstable manual processing.

Technical Support

On-site installation, commissioning and operation training services are available, together with technical support for machine operation and maintenance.

Working video of Paper Core Slitting Machine

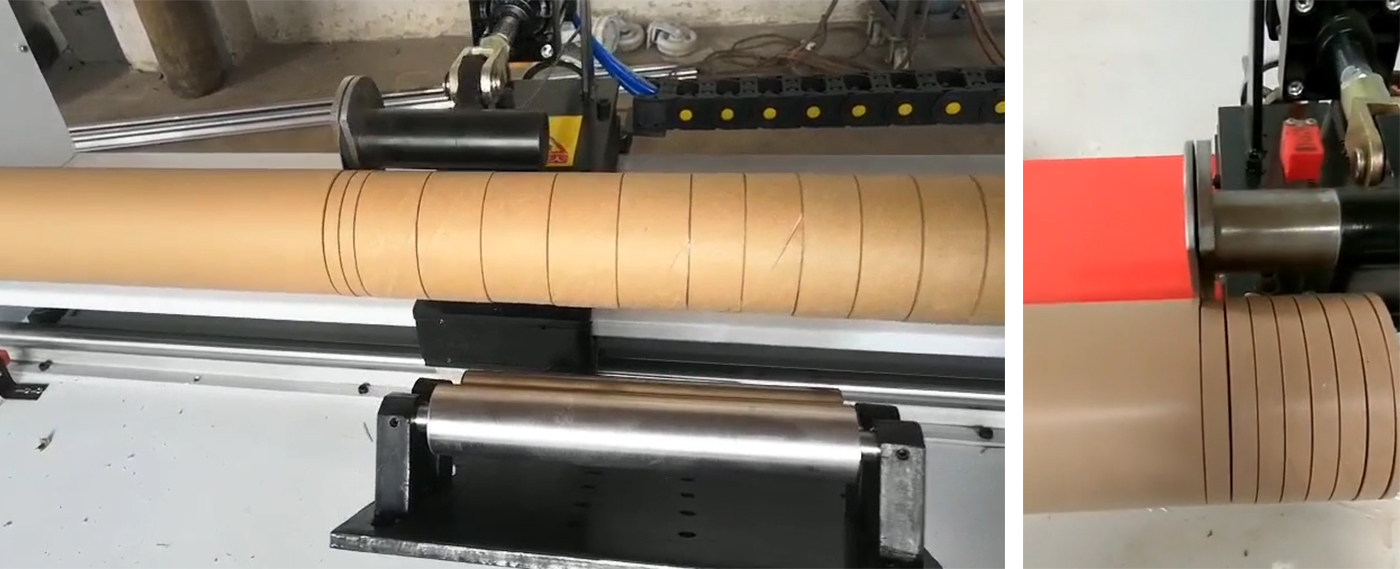

The machine in working:

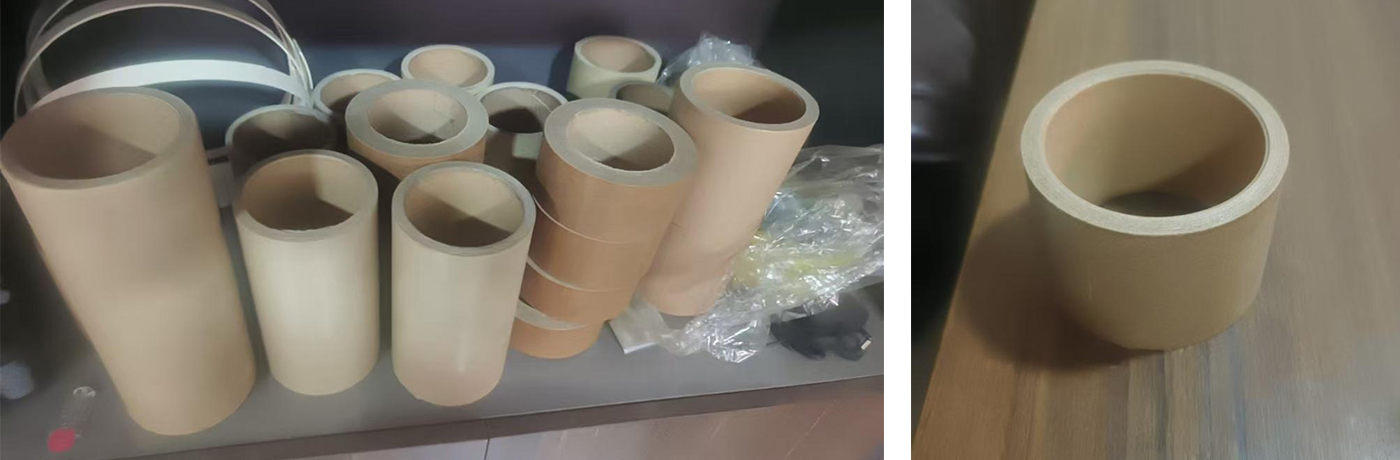

Cross-section effect display

Paper Tube Cutting Machine for Your Production Line

A suitable paper tube cutter is not selected only by cutting speed. Tube diameter, wall thickness, cutting length, finished edge quality and production volume should all be considered together.

This precision model is designed for manufacturers that require repeatable paper core cutting with servo-controlled positioning and flexible length settings.

Whether you manufacture tape cores, film cores, packaging tubes or industrial paper cores, we can provide a customized paper tube cutting solution according to your material and production requirements.

Send us your tube dimensions and required cutting length to receive a machine recommendation and quotation.

Frequently Asked Questions

What is a paper tube cutting machine?

A paper tube cutting machine is used to cut longer paper tubes or paper cores into specified finished lengths. It is commonly used in tape, film, packaging, printing and paper converting industries.

Can this machine be used as a paper core cutting machine?

Yes. Paper tubes used as winding supports for tape, film, paper and other roll materials are commonly called paper cores. This machine can therefore be used as a paper core cutting machine for compatible core specifications.

What is the cutting length of this machine?

The cut pipe length is 5-1200mm.

What paper tube thickness can it process?

The specified cut pipe thickness is 5-15mm.

What cutting method does the machine use?

The machine uses pneumatic cutting with a single round knife.

How is the cutting position controlled?

The machine uses servo numerical control for cutting position control.

What is the cutting speed?

The specified cutting speed is Once/1-3 seconds, with a tool holder movement speed of 300mm/s.

Can different paper tube cutting lengths be produced?

Yes. The equipment supports fixed-length cutting and multi-segment cutting, allowing different cutting lengths to be set according to production requirements.

What industries commonly use this paper tube cutter?

Typical applications include adhesive tape, stretch film, packaging, printing, paper converting, toilet paper and other industries that use paper tubes or paper cores.

Can the paper tube cutting machine be customized?

Yes. Customized sizes, cutting strokes and functional configurations can be discussed according to your paper tube specifications and production requirements.
