A4 Paper Sheeting Machine

The A4 Paper Sheeting Machine is designed to convert jumbo paper rolls into finished A4 and A3 paper sheets with automatic feeding, servo-controlled length cutting and automatic sheet stacking.

Using a servo motor to control cutting length, the machine provides a specified cutting precision of ±0.2mm and supports paper within a 70–120gsm cutting capability.

The machine integrates electric and pneumatic control, automatic tension control, EPC web edge correction, automatic counting, alarm, automatic stop and waste edge removal, providing an efficient solution for manufacturers producing A4/A3 sheets from paper rolls.

With a production capacity of 3 reams per minute, this model is suitable for copy paper converting and other roll-to-sheet paper production applications.

Send us your paper GSM, jumbo roll dimensions and required A4/A3 production capacity for machine selection and quotation.

Main Features of the A4 Paper Sheeting Machine

Automatic Jumbo Roll to A4/A3 Sheet Cutting

The machine converts paper jumbo rolls directly into standard A4 or A3 sheets.

Automatic feeding, cutting and stacking reduce manual handling and provide a more consistent production process for paper converters.

Typical production flow:

Jumbo Paper Roll → Automatic Feeding → Web Alignment → Servo Length Cutting → A4/A3 Sheets → Automatic Stacking

Servo-Controlled Cutting Length

A servo motor controls constant-length cutting to improve sheet size consistency during continuous production.

The specified cutting precision is:

±0.2mm

This makes the machine suitable for applications where consistent finished A4/A3 sheet dimensions are important for downstream packaging and distribution.

Automatic Sheet Stacking

Finished sheets are automatically stacked into piles after cutting.

The stacked paper can then be delivered by conveyor belt to an automatic packaging machine, helping manufacturers build a more continuous A4 paper converting and packaging line.

Automatic Tension and Web Edge Control

Stable paper feeding is important when converting jumbo rolls at continuous production speeds.

The machine is equipped with:

• Full automatic tension control

• EPC automatic web edge correction

• Frequency converter speed control

• Automatic counting

• Alarm function

• Automatic stop

• Automatic waste edge removal

These functions help maintain stable paper movement and reduce manual adjustment during production.

Core Advantages

1. Designed Specifically for A4 and A3 Paper Production

Unlike general industrial paper sheeters designed for multiple large sheet formats, this machine is focused on producing:

• A4 paper sheets

• A3 paper sheets

This makes it particularly suitable for manufacturers converting jumbo rolls into standardized finished paper sizes.

2. Automatic Feeding and Cutting

The machine adopts an automatic feeding and winding structure for simplified operation.

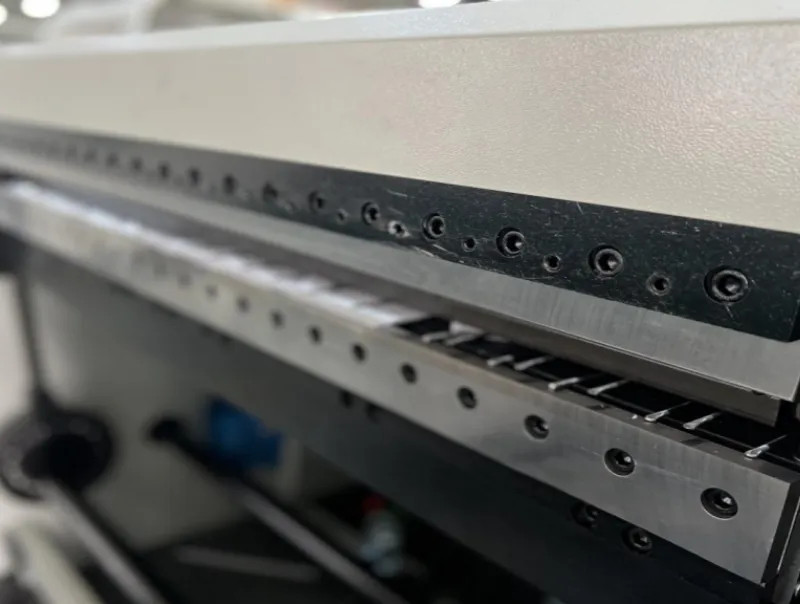

Paper rolls are continuously fed into the cutting section, where the servo-controlled guillotine knife cuts the web into the required A4 or A3 sheet size.

3. ±0.2mm Cutting Precision

Servo motor control helps maintain constant cutting length.

The specified cutting precision is:

±0.2mm

Consistent dimensions help improve downstream sheet stacking, ream packaging and finished product quality.

4. Automatic Ream Stacking

Finished sheets are automatically stacked into piles, reducing manual collection and preparing the paper for subsequent packaging.

The specified capacity is:

3reams per minute

5. Two-Roll Feeding Configuration

The machine is equipped with:

two rolls

for feeding, supporting continuous paper roll converting according to the machine configuration.

A4 Copy Paper Sheeting Applications

Copy Paper Production

The machine is suitable for converting jumbo paper rolls into A4 and A3 sheets for copy paper production.

Typical finished products include:

• A4 office paper

• A3 office paper

• Printing paper sheets

• General copy paper

• Standard-size paper sheets

Paper Converting Factories

Paper converters can use the A4 paper sheeter machine to convert large mother rolls into standard sheet sizes for downstream packaging and distribution.

This allows manufacturers to purchase or produce jumbo rolls and convert them into market-ready A4/A3 products according to production demand.

Printing Paper Processing

The machine can also support compatible printing and paper converting applications requiring standard A4/A3 sheet formats within the specified paper weight range.

From Jumbo Roll to Finished A4 Paper

An A4 paper production line requires stable control throughout the converting process.

The machine integrates several functions into one continuous workflow:

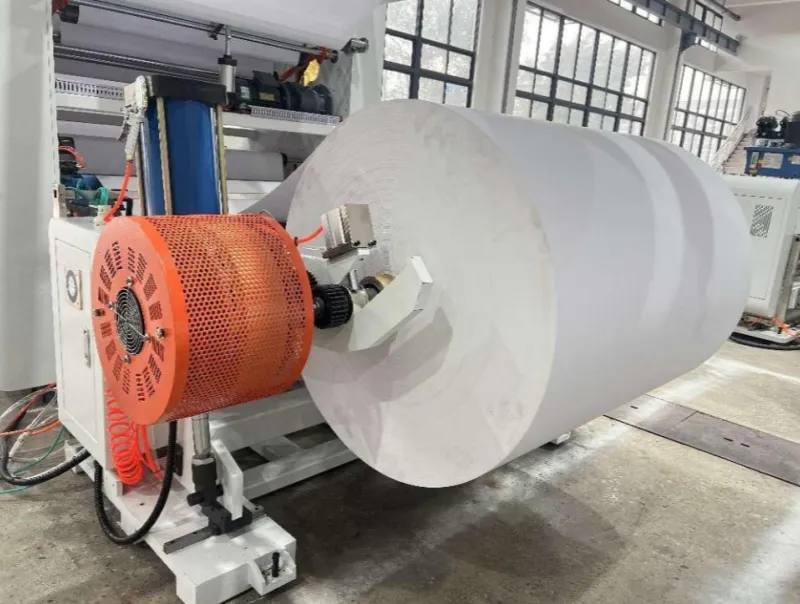

Jumbo Roll Unwinding

The machine supports mother rolls with:

• Maximum width: 1100mm

• Maximum diameter: 1400mm

• Maximum weight: 1200KG

Automatic Tension Control

Automatic tension control helps keep the paper web stable during feeding.

EPC Web Alignment

The EPC system automatically corrects the web edge position to maintain accurate feeding.

Servo Length Cutting

The servo motor controls the cutting length according to the selected A4/A3 specification.

Automatic Stacking

Finished sheets are automatically collected and stacked into reams for downstream packaging.

Why Servo Control Matters in A4 Paper Sheeting

Producing standard-size paper requires consistent sheet length over long production runs.

If cutting length varies, manufacturers may encounter:

• Uneven ream edges

• Poor stacking

• Packaging problems

• Increased paper waste

• Inconsistent finished product sizes

The servo-controlled cutting system helps maintain repeatable cutting length and supports the specified ±0.2mm cutting precision.

For commercial A4/A3 paper converting, this improves consistency between individual sheets and finished reams.

Automatic A4 Paper Sheeter for Efficient Production

The machine combines automatic feeding, cutting, counting and stacking to reduce manual intervention during normal production.

Its specified cutting speed is:

50-150times/min

and production capacity is:

3reams per minute

Actual production performance will depend on paper material, GSM, finished format and operating conditions.

Key Control and Automation Features

The A4 paper sheeting machine integrates multiple control functions for continuous roll-to-sheet production.

Servo Length Control

Controls constant sheet length and supports accurate A4/A3 cutting.

PLC and Touch Screen Control

The machine adopts Japanese Panasonie PLC control and Kunlunpassty touching panel for operating control.

Frequency Converter Speed Regulation

The frequency converter controls motor speed for stable operation.

Automatic Counting and Alarm

Automatic counting helps operators monitor production quantity, while alarm and automatic stop functions support production management.

EPC Edge Position Correction

Web edge position is automatically corrected by the EPC system.

Automatic Waste Edge Removal

Waste edge is blown out of the machine automatically by the fan.

Who Should Choose This A4 Paper Sheeter?

This machine is suitable for manufacturers looking for:

• An A4 paper sheeting machine

• An A3 A4 paper sheeter

• Jumbo roll to A4 sheet conversion

• Automatic paper sheet stacking

• Servo-controlled cutting

• 70–120gsm paper processing

• ±0.2mm cutting precision

• Copy paper production

• A4/A3 paper converting

It is particularly suitable when the main production requirement is standardized A4/A3 sheet output rather than large-format industrial paper sheeting.

A4 Paper Sheeting Machine vs. General Paper Sheeters

The right sheeter should be selected according to the finished product.

A general industrial paper sheeter may be designed for wide paper webs, heavy board and multiple custom sheet lengths.

The A4 paper sheeting machine, however, is specifically configured around standard A4/A3 sheet production.

Choose this model when your priorities include:

• A4/A3 finished size

• Copy paper converting

• Automatic sheet stacking

• Standardized sheet output

• Jumbo roll processing

• Connection with downstream ream packaging

For heavier paper, larger sheet formats or higher-speed industrial board sheeting, other paper sheeting machines may be more suitable.

Why Choose Our A4 Paper Sheeting Machine?

Purpose-Built for A4/A3 Production

The machine is designed around standard paper sheet sizes instead of general-purpose converting alone.

Automatic Production Process

Automatic feeding, servo cutting and stacking reduce manual handling during production.

Stable Paper Feeding

Automatic tension control and EPC edge correction help maintain stable material movement.

Ready for Downstream Packaging

Finished paper sheets can be stacked into reams and delivered by conveyor belt to an automatic packaging machine.

Application-Based Machine Selection

We can evaluate your paper GSM, jumbo roll dimensions, required sheet size and production capacity before recommending the machine configuration.

Frequently Asked Questions

What is an A4 paper sheeting machine?

An A4 paper sheeting machine converts jumbo paper rolls into standard A4 or A3 sheets through automatic unwinding, feeding, length control, cutting and stacking.

Can this machine produce both A4 and A3 sheets?

Yes. The specified cutting size is A4/A3.

What paper weight can the machine process?

The parameter table specifies a cutting capability of 70-120gsm.

What cutting system does the machine use?

The machine uses a Guillotine knife.

What is the cutting precision?

The specified cutting precision is ±0.2mm.

What is the cutting speed?

The specified cutting speed is 50-150times/min.

What is the production capacity?

The specified capacity is 3reams per minute.

What size mother roll can the machine handle?

The machine supports a maximum mother roll width of 1100mm, maximum diameter of 1400mm, and maximum mother roll weight of 1200KG.

How many feeding rolls does the machine use?

The specified feeding rolls quantity is two rolls.

Does the machine automatically stack the finished paper?

Yes. Finished sheets are automatically stacked into piles, which can be delivered by conveyor belt to an automatic packaging machine.

Does the machine have automatic web alignment?

Yes. Web edge position is automatically corrected by the EPC system.

Can this machine be connected to an automatic packaging line?

The original machine description states that stacked paper sheets can be delivered to an automatic packaging machine by conveyor belt, making it suitable for integration into a more complete A4 paper converting line.
