Description
The HX Tape Laminating Slitting Rewinder integrates three functions – slitting, laminating, and rewinding – into one system, enabling comprehensive processing of rolled materials. integrates three functions – slitting, laminating, and rewinding – into one system, enabling comprehensive processing of rolled materials.
It is applicable for slitting industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in industries such as printing, packaging, 3C, leather, garment, plastic, etc.

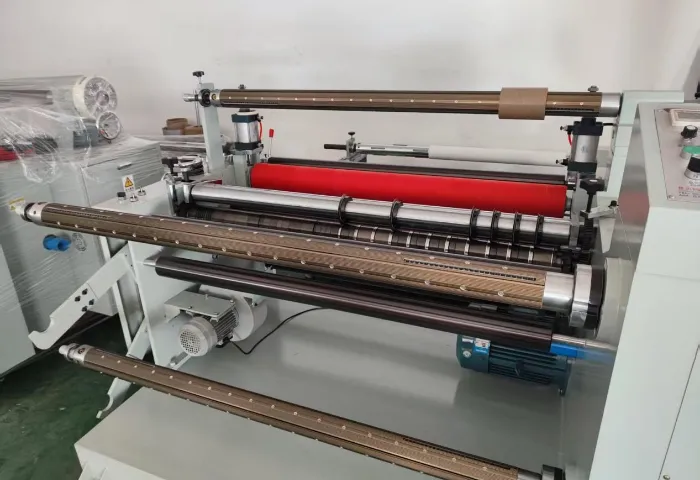

Main Characteristics
Laminating function
EPC (edge positioning control):Unit: Photo Cell*2pcs
Waste discharge function
Magnetic brake and clutch
Length counting function, automatically stop after it reaches the length you set.
2 rewindinginflatable shafts, easy for unload materials.
Suitable Materials
Details
| Model | HX-650FQ | HX-1300FQ | HX-1600FQ |
| Max. feeding width | 650mm | 1300mm | 1600mm |
| Min. slitting width | 18mm | 18mm | 18mm |
| Main engine power | 2.2KW | 3.7KW/6KW | 3.7KW/6KW |
| Speed | 80m/min | 80m/min | 80m/min |
| Machine size | 2400*1700*1300mm | 2400*2000*1300mm | 2400*2300*1600mm |
| Weight | 1000KG | 1200KG | 1500KG |
| Max. unwinding diameter | 600mm | 800mm | 800mm |
| Max. rewinding diameter | 400mm | 450mm | 450mm |
| Precision | 0.1mm | 0.1mm | 0.1mm |
| Power | 220V 50Hz | 380V 50Hz | 380V 50Hz |
At Paper Saw King (Suzhou) Technology Co., Ltd., we specialize in the R&D, manufacturing, and service of advanced laminating slitting rewinders.
Designed to meet the demands of today’s flexible packaging, printing, and industrial materials industries, our equipment combines lamination, precision slitting, and efficient rewinding in one streamlined system — helping you reduce downtime, save energy, and enhance product consistency.
Whether you are converting laminated films, paper rolls, foil, or multi-layer composites, our laminating slitting rewinders ensure clean edges, stable tension, and reliable long-term performance.
When procurement teams consider investing in a laminating slitting rewinder, they focus on more than just speed — they look for a solution that improves efficiency, reliability, and ROI. Here’s what truly matters, and how we deliver:
| Buyer Concern | What It Means | How Paper Saw King Addresses It |
|---|---|---|
| Material Compatibility | Can the machine handle different materials like PET, BOPP, foil, or kraft paper? | Our machines are built for multi-material flexibility — perfect for films, papers, foils, laminates, and adhesive substrates. |
| Precision & Stability | Will it maintain consistent cutting and lamination quality over long runs? | Advanced servo systems, tension control, and EPC ensure high accuracy at every meter. |
| Production Speed & Efficiency | Can it keep up with your throughput without sacrificing quality? | High-speed operation (up to 600 m/min) with steady performance and automatic synchronization. |
| Automation & Control | How much human intervention is required? | PLC touch-screen interface, automatic tension correction, and intelligent fault detection make operation easy and safe. |
| Maintenance & Downtime | Is it easy to clean, maintain, and find parts? | Modular design with quick blade change, spare parts support, and global technical assistance. |
| Energy Efficiency | Does it optimize energy usage during lamination and slitting? | Servo-driven power systems reduce waste and save costs per roll. |
| Parameter | Description |
|---|---|
| Material Types | BOPP, PET, CPP, PE, PVC, aluminum foil, paper, laminated films |
| Lamination Methods | Thermal, dry, or adhesive coating systems |
| Slitting Width | Customizable per production line (standard: 50–1600mm) |
| Max Speed | 400–600 m/min |
| Rewinding Diameter | Up to 800mm |
| Control System | Servo motor with PLC + touch-screen interface |
| Edge Control | EPC photoelectric correction |
| Optional Functions | Static elimination, waste edge trimming, automatic knife positioning |
Our laminating slitting rewinders are trusted across a wide range of sectors:
Flexible Packaging: Food packaging films, pouches, and sealing laminates
Printing & Label Converting: BOPP labels, PET films, coated papers
Industrial Materials: Insulation sheets, protective films, adhesive tapes
Medical & Hygiene Products: Sterile packaging laminates, breathable films
If your production line involves laminated or composite materials, Paper Saw King can design a slitting rewinder system perfectly matched to your workflow.
Paper Saw King is a professional enterprise specializing in the integrated R&D, production, sales, and service of high-end slitting and rewinding equipment.
With over 10 years of expertise, our machines are exported to 50+ countries and widely recognized for precision engineering, reliable performance, and intelligent control.
We have participated in 30+ global industry exhibitions, showcasing our dedication to continuous innovation and customer satisfaction.
Who We Are: A full-category roll slitting equipment supplier
What We Offer: One-stop solutions for all slitting and converting needs
Our Core Values: Innovation, quality, and customer trust
One-Stop Solutions – From lamination to slitting and rewinding, we cover the full production process.
Customized Engineering – Machines built to match your materials, speed, and layout requirements.
Proven Reliability – Long-term stability, precision, and low maintenance.
Global Support Network – Professional after-sales service and spare parts supply.
Energy & Cost Efficiency – Optimized automation reduces labor and energy consumption.
Q1: What materials can your laminating slitting rewinders process?
They can handle a wide range of flexible materials including PET, PE, BOPP, CPP, kraft paper, aluminum foil, and composite laminates.
Q2: Can I customize the lamination system or slitting width?
Yes — our engineers provide tailored solutions based on your specific material type, roll size, and production capacity.
Q3: How does your machine maintain consistent lamination quality?
With precision temperature and pressure control, servo synchronization, and advanced tension feedback systems.
Q4: What support do you offer after installation?
We provide full technical guidance, remote diagnostics, spare parts supply, and on-site training when needed.
Q5: How do you ensure long-term stability?
Every unit undergoes strict testing and calibration to guarantee reliable performance under continuous production conditions.
Enhance your converting line with our Laminating Slitting Rewinders — engineered for precision, speed, and long-term performance.
Contact Paper Saw King today to discuss your material requirements or request a personalized quotation.
Customized Products
We offer comprehensive customization services that cover appearance, functionality, and configuration – please feel free to share your specific requirements.
