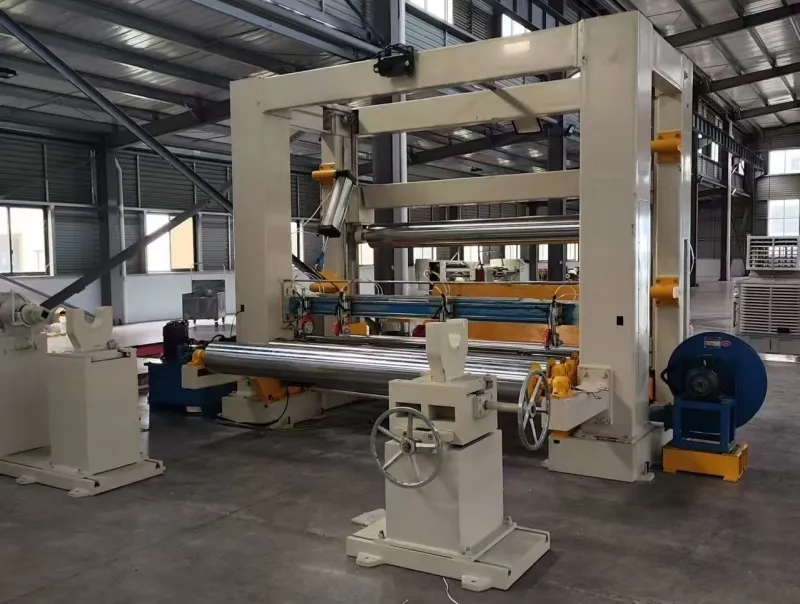

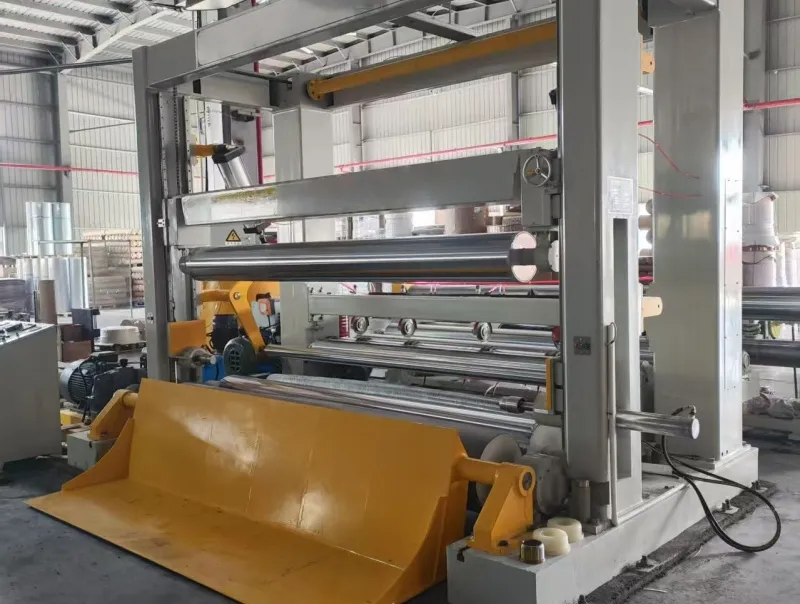

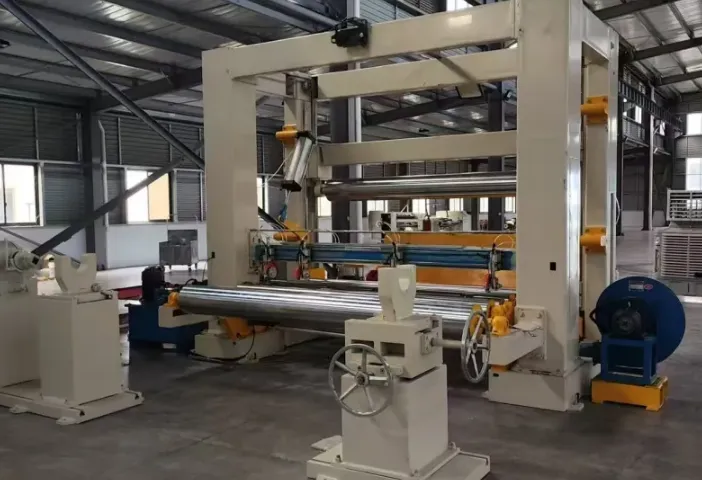

Bottom Feed Slitting Rewinding Machine for Heavy Paper Rolls

Engineered for High-Speed, High-Tension Paper Converting Operations

In modern paper mills and converting plants, inefficient slitting and unstable tension control often lead to material waste, roll defects, and costly downtime.

This bottom feed slitting rewinding machine is specifically designed to handle jumbo paper rolls with high precision, stable tension, and continuous high-speed operation, making it ideal for kraft paper, packaging paper, and industrial base paper processing.

Why Choose a Bottom Feed Slitting Rewinder?

Unlike traditional top-feed systems, the bottom feed structure allows:

• Easier loading of heavy jumbo rolls (Ø2000 mm)

• Improved operator safety

• More stable web alignment and tension control

• Reduced downtime during roll changeovers

This design is especially suitable for paper mills and large-scale converting lines handling high-volume production.

Key Advantages That Improve Your Production Efficiency

1. High-Speed Slitting up to 600 m/min

Maintain consistent output with a designed speed of 650 m/min, ensuring your production line keeps up with demand.

2. Precision Tension Control (Up to 1200 N/m)

The integrated braking system ensures:

• Stable web tension

• Reduced wrinkles and breaks

• Improved finished roll quality

Perfect for high-density and high-grammage paper (70–250 g/m²).

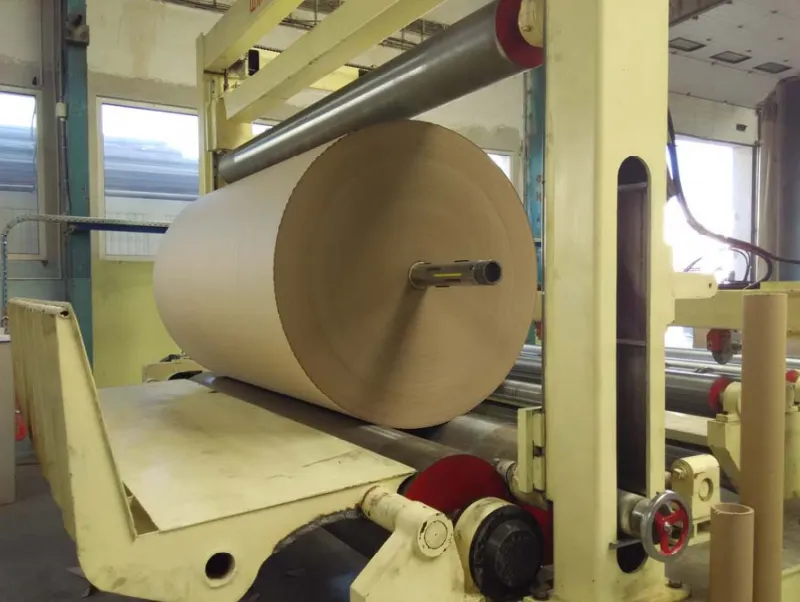

3. Heavy-Duty Jumbo Roll Handling

• Parent roll width: up to 2760 mm

• Parent roll diameter: up to Ø2000 mm

Built for paper mill-grade operations, handling large rolls without compromising accuracy.

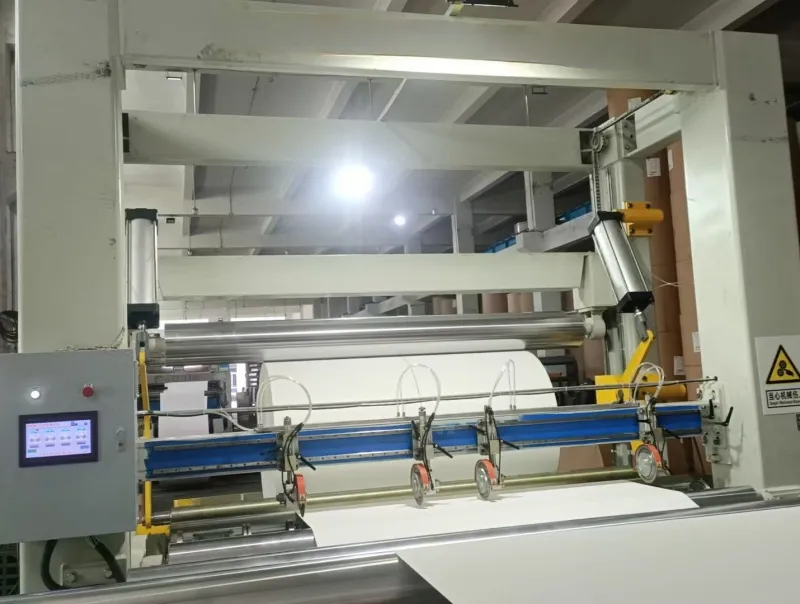

4. Pneumatic Knife Slitting System

Equipped with 4 sets of pneumatic top knives, delivering:

• Clean, precise cuts

• Minimal edge damage

• Consistent roll width control

5. Automatic Rewinding & Roll Handling

• Automatic trimmed roll push system

• Lowering cradle for safe unloading

• Consistent roll tightness and diameter control

Reduces labor intensity while improving operational efficiency.

6. Stable and Intelligent Drive System

• 45 kW main motor

• Frequency converter for precise speed regulation

Ensures smooth acceleration, deceleration, and long-term reliability.

Typical Applications

This industrial slitting rewinding machine is widely used for:

• Kraft paper converting

• Packaging paper production

• Corrugated base paper processing

• Paper mill jumbo roll slitting

• Industrial paper roll rewinding

Common Problems This Machine Solves

✔ Uneven rewinding tension causing roll deformation
✔ Frequent web breaks at high speed
✔ Difficulty handling large jumbo rolls
✔ Low slitting precision affecting downstream processes
✔ High labor cost in manual roll handling

Customization Options Available

We understand every production line is different. This machine can be customized based on:

• Roll width and diameter requirements

• Slitting configurations

• Automation level

• Integration with existing paper production lines

FAQ – Buyers Also Ask

Q1: Is this slitting rewinder suitable for high-density kraft paper?

Yes, the machine is designed for 70–250 g/m² paper with stable tension control up to 1200 N/m, ensuring high-quality output.

Q2: Can it handle jumbo rolls from paper mills directly?

Absolutely. It supports Ø2000 mm parent rolls, making it ideal for direct integration with paper-making lines.

Q3: How does the bottom feed system improve efficiency?

It simplifies loading of heavy rolls, improves alignment, and reduces downtime compared to top-feed systems.

Q4: Is automation included?

Yes, features like auto roll pushing and hydraulic systems reduce manual handling and improve productivity.

Q5: Can the machine be customized?

Yes, we provide customized slitting rewinder solutions based on your production requirements.

Get a Reliable Slitting Rewinder for Your Production Line

If you're looking for a high-speed, heavy-duty bottom feed slitting rewinding machine that delivers precision, stability, and long-term reliability, this solution is built for your operation.

Contact us today to get technical consultation and a tailored solution.

Built for performance. Engineered for efficiency — Paper Saw King
