HT Slitter Rewinder is a high-performance slitting and rewinding machine designed for processing super-large rolls of diverse materials, including kraft white cardboard (20-400g/m²), laminated paper, silicone-coated substrates, aluminum foil, PVC films, and non-woven fabrics. Equipped with three servo motors for synchronized control, it ensures precision slitting (±0.2mm accuracy) through automatic taper tension and center rewinding technology. The machine features variable frequency speed regulation for stable operation during acceleration, alongside intelligent functions like automatic meter counting, edge deviation correction (ultrasonic/CCD system), and waste-edge removal via high-pressure fans. Its hydraulic shaftless unwinding and air-expanding shaft loading systems enhance efficiency, while circular/razor blade cutting methods deliver clean, consistent results.

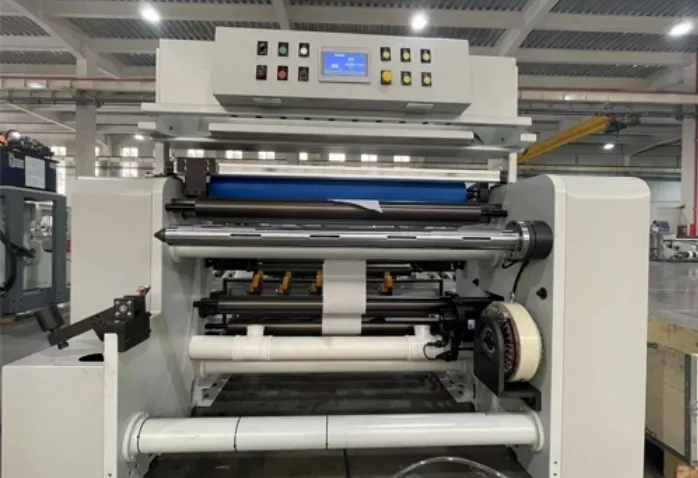

Main Characteristics
Precision Automation: Three-servo motor control with ±0.2mm accuracy and ultrasonic/CCD correction for irregular materials.
Efficient Handling: Hydraulic shaftless unwinding and air-expanding shaft loading for seamless material processing.
Intelligent Operation: Variable frequency speed regulation, automatic tension control, and real-time alarm systems.
Versatile Cutting: Dual circular/razor blade cutting with automatic waste-edge removal for diverse materials.
Suitable For
Various materials including paper, PVC, and more.
Ideal for packaging, printing manufacturers and related industries.
Parameter Table
| Specification | Parameter |
|---|---|
| Model | HT Slitter Rewinder |
| Max width (mother roll) | 1300mm |
| Min width (finished roll) | 50mm |
| Max diameter (mother roll) | 1600mm |
| Max diameter (finished roll) | 1600mm |
| Max mother roll weight | 1500KG |
| Speed of slitting | ≤300m/min |
| Slitting capability | 40-550gsm |
| Rewinding way | Central |
| Precision | ±0.2mm |
| Speed regulation control | Inverter |
| Power input | 380V, 50HZ, 3PH |
| Dimension (L×W×H) | 4150×2200×1500mm |
| Total weight | 6.2T |
The HT Paper Slitter Rewinder from Paper Saw King (Suzhou) Technology Co., Ltd. is a high-efficiency, servo-driven machine engineered to handle super-large rolls of diverse materials with remarkable precision and stability.
It combines advanced slitting and rewinding technology in one intelligent system — ensuring smooth, burr-free cuts, tight rewinds, and superior roll formation across multiple substrates. Designed for industrial converters, packaging producers, and coating manufacturers, it delivers high output and accuracy (±0.2 mm) while reducing downtime and waste.
| Buyer Concern | Challenge | Our Solution |
|---|---|---|
| Wide Material Range | Handling paper, foil, and film on one line | Multi-material design accommodates kraft, laminated, foil, PVC, and nonwoven rolls |
| Cutting Accuracy | Maintaining consistent slitting on large rolls | Servo-driven system ensures ±0.2mm precision and perfect edge finish |
| Roll Rewinding Quality | Core pressure inconsistencies during winding | Automatic taper tension and center rewinding deliver tight, balanced rolls |
| Efficiency & Speed | Slow acceleration or stopping causes waste | Variable frequency regulation keeps motion stable and consistent |
| Automation Level | Manual adjustments slow production | Smart functions — automatic counting, edge control, and waste removal — reduce operator load |
| Maintenance & Usability | Frequent downtime from mechanical complexity | Hydraulic and shaftless systems simplify operation and reduce maintenance frequency |
The HT Slitter Rewinder is built to meet the needs of multiple industries where precision and flexibility are essential:
Packaging & Laminating Converters – Kraft paper, laminated paper, and aluminum foil
Label & Coating Materials – Silicone-coated substrates, PVC films
Nonwoven & Fabric Manufacturers – Textile, hygiene, and filtration applications
Cardboard & Paperboard Production – Heavy-weight kraft and coated boards
If your workflow requires cutting, trimming, and rewinding large paper or film rolls, the HT Slitter Rewinder provides reliable, high-speed, and accurate performance day after day.
Paper Saw King is a professional enterprise specializing in the R&D, production, sales, and service of high-end slitting and sheeting equipment.
With over 10 years of experience in roll processing machinery, we’ve earned the trust of clients in 50+ countries by providing efficient, durable, and intelligent slitting solutions for global industries — from paper converting to flexible packaging.
10+ Years of Experience in Roll Slitting Equipment
Exported to 50+ Countries Worldwide
30+ International Exhibition Participations
Customized Solutions for Every Material Type
Reliable After-Sales Service and Spare Parts Support
Wide Material Compatibility – Handles paper, film, foil, and nonwovens with equal precision
High-Accuracy Servo Control – ±0.2mm slitting precision and perfect roll edges
Automatic Edge Control & Waste Removal – Less manual work, more uptime
Efficient Unwinding & Rewinding – Hydraulic shaftless design saves setup time
Customizable Configuration – Tailored to your material type, roll size, and speed requirements
Durable Industrial Design – Built for continuous 24/7 operation
Q1: What materials can the HT Slitter Rewinder process?
It can process kraft white cardboard, laminated paper, aluminum foil, PVC film, silicone-coated paper, and nonwoven materials.
Q2: How accurate is the slitting process?
The servo control system maintains ±0.2mm precision for consistent roll width.
Q3: Is the machine fully automatic?
Yes, it integrates automatic tension control, meter counting, waste-edge removal, and deviation correction.
Q4: What are the available cutting options?
It supports both circular and razor blade cutting for different material types.
Q5: Can it be customized for my production line?
Absolutely — power, roll diameter, and configuration can be tailored to match your specific needs.
Looking for a reliable paper slitter rewinder that delivers accuracy, flexibility, and long-term stability?
Paper Saw King (Suzhou) Technology Co., Ltd. provides custom-built slitting and rewinding machines that streamline your production and improve product quality.
Contact us now for technical consultation or a customized quotation.
