Description

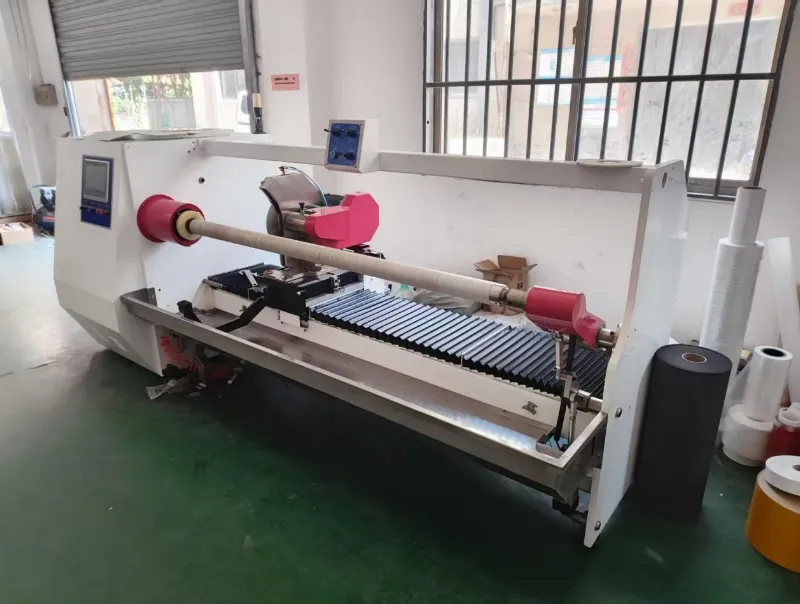

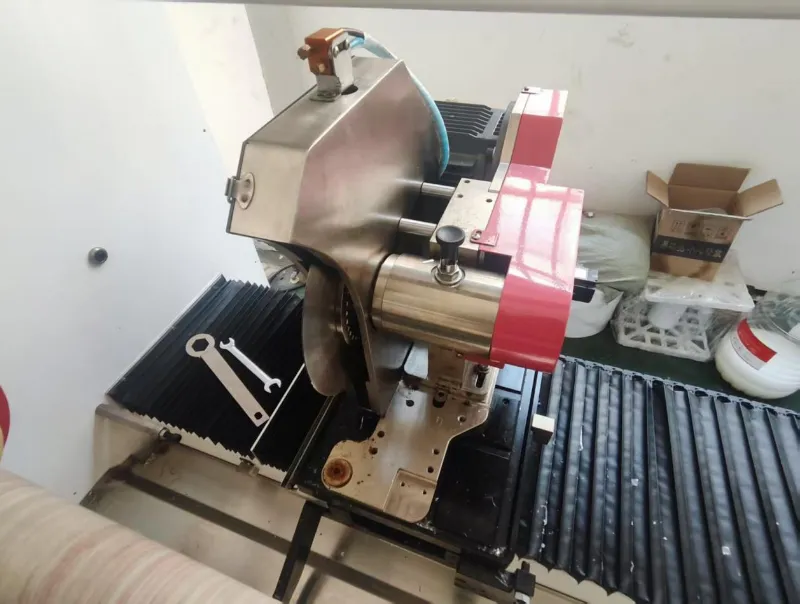

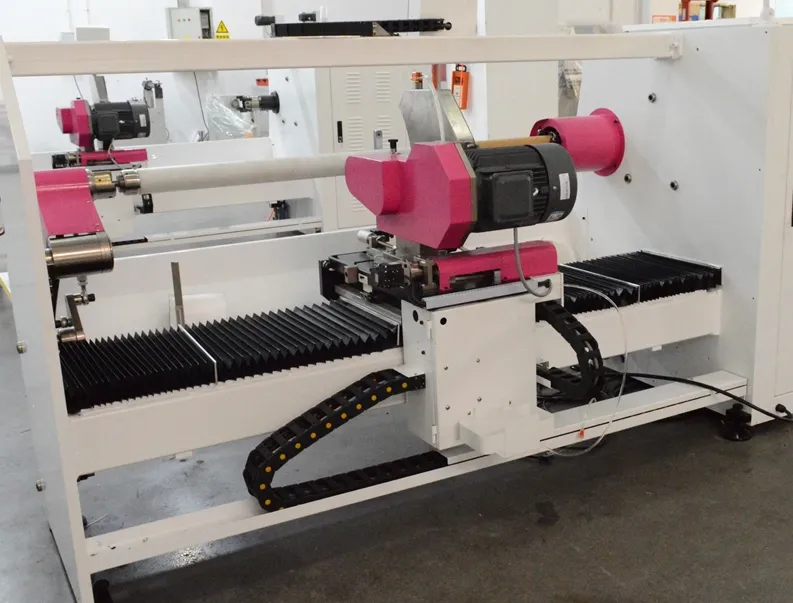

HX Single Shaft Cutting Machine utilizes a small circular knife to perform log slitting, suitable for cutting a wide range of materials including 3M films, Mylar, Kapton, EVA, PE, protective films, PVC, BOPP, masking tapes, double-sided tapes, kraft paper tapes, and fabric-backed adhesives.

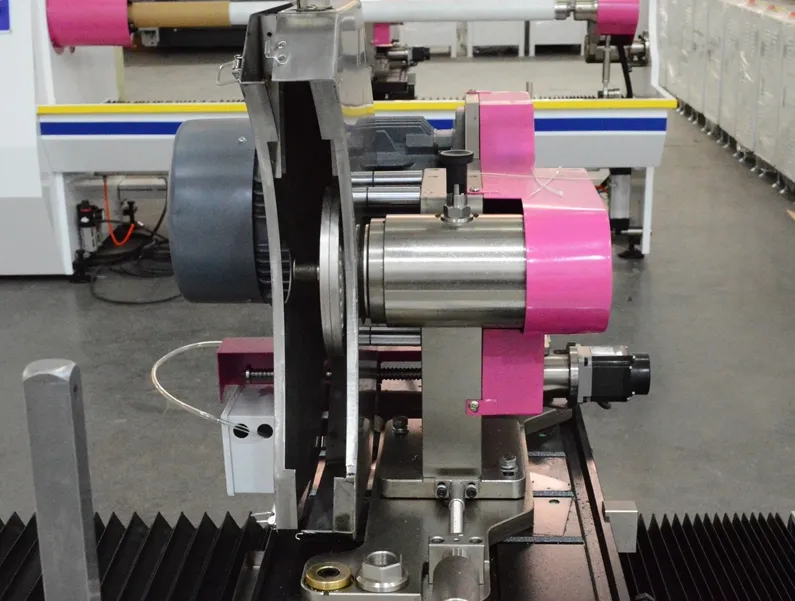

Main Characteristics
Slitting precision ±0.1mm
Intelligence centralized control panel: cutting blade speed,cutting width display,cutting quantity displayServo motor controls cutting widths, equipment high precision ball screw to ensure accurate size.
Parameter Table
| Model | HX-1300Q | HX-1600Q |
| Total Power | 9KW | 9KW |
| Max.feeding width | 1300mm | 1600mm |
| Min.slitting width | 2mm | 2mm |
| Slitting precision | ±0.1mm | ±0.1mm |
| Max.cutting dia. | 400mm | 400mm |
| Cutting blade dia | 250-450mm | 250-450mm |
The HX Single Shaft Log Slitting Machine from Paper Saw King (Suzhou) Technology Co., Ltd. is designed for flexible, high-precision cutting of rolled materials. Using a small circular knife for log slitting, this model delivers clean, accurate cuts and stable performance across a wide variety of substrates — from adhesive tapes to industrial films.
Built for performance, efficiency, and adaptability, our single-shaft systems are ideal for converters and manufacturers who need consistent cutting quality, minimal waste, and smooth operation with reduced labor input.
| Parameter | Description |
|---|---|
| Cutting Method | Circular knife (log slitting) |
| Applicable Materials | 3M films, Mylar, Kapton, EVA, PE, protective films, PVC, BOPP, masking tapes, double-sided tapes, kraft paper tapes, fabric-backed adhesives |
| Power Supply | 380V, 50–60Hz (customizable) |
| Motor Power | High-efficiency servo motor system |
| Cutting Range | Customizable diameter and width per roll type |
| Control System | PLC control with intuitive touch-screen interface |
| Cutting Precision | ±0.1 mm |
| Drive Type | Single shaft with automatic blade feed |
| Operator Mode | Semi or full automatic depending on configuration |
| Buyer Concern | Why It Matters | Paper Saw King’s Solution |
|---|---|---|
| Material Flexibility | Need to cut multiple material types without changing machines | Compatible with a wide range of films, foils, and tapes, from PE and PVC to EVA and Mylar |
| Cutting Precision | Inconsistent cuts lead to material waste | Advanced circular blade system with servo-driven accuracy ensures uniform thickness and clean edges |
| Efficiency & Speed | Production must match daily output goals | Rapid cutting cycle with optimized torque balance for high throughput |
| Ease of Operation | Operators require simple controls | User-friendly PLC touch panel simplifies setup, control, and error alerts |
| Maintenance & Blade Life | Frequent blade changes reduce uptime | Durable alloy blades with automatic sharpening and quick-release design |
| Safety & Reliability | High-speed cutting poses risks | Full safety enclosure and emergency stop features ensure operator protection |
The HX Single Shaft Log Slitting Machine is engineered for diverse production needs, widely applied in:
Adhesive Tape Manufacturing – Masking tape, double-sided tape, fabric tape, kraft tape
Electronics & Film Processing – PET, Mylar, Kapton, 3M protective films
Packaging & Label Industry – BOPP and PE rolls for labels, wrapping, or sealing
Automotive & Industrial Materials – EVA foams, insulating sheets, and film laminates
If your production involves adhesive, laminated, or protective roll materials, this single-shaft slitter offers the precision and reliability your workflow demands.
Paper Saw King is a professional manufacturer integrating R&D, production, sales, and after-sales service for high-end slitting rewinding machine.
With over 10 years of expertise and clients in 50+ countries, we provide customized, efficient, and intelligent cutting solutions for global industries.
Our machines are trusted in paper, film, nonwoven, and adhesive tape production — built to deliver accuracy, stability, and long-lasting performance.
10+ Years of Expertise in Roll Slitting Equipment
Exported to 50+ Countries Worldwide
30+ International Industry Exhibition Participations
Continuous Innovation, Reliable Quality, and Global Support
Versatile Cutting Capability – Works with diverse film, adhesive, and tape materials
High Precision Circular Blade System – Smooth, burr-free cuts with minimal waste
Easy Operation – PLC control and ergonomic design for efficient handling
Custom Configurations – Designed to match your material specs and production speed
Proven Reliability – Built for 24/7 industrial use with global technical support
Q1: What materials can this single shaft slitting machine handle?
It supports a wide range — including 3M films, EVA foam, PE, PET, PVC, Kapton, BOPP, and adhesive tapes.
Q2: Can the machine be customized for my roll size or material type?
Yes, we offer tailored solutions to fit your specific width, diameter, and film tension requirements.
Q3: What’s the cutting precision?
Typical accuracy is within ±0.1 mm, ensuring consistently uniform roll output.
Q4: Is it easy to operate?
Absolutely. A touch-screen PLC interface allows intuitive setup and real-time monitoring.
Q5: Do you provide after-sales support and spare parts?
Yes, our team offers installation guidance, training, and quick delivery of spare parts worldwide.
Looking for a reliable and precise Single Shaft Log Slitting Machine?
Paper Saw King provides customized slitting solutions for films, tapes, and adhesive materials — designed for accuracy, speed, and long-term stability.
Contact us today to get a tailored quotation or schedule an online demonstration.
