Roll Mover

Description

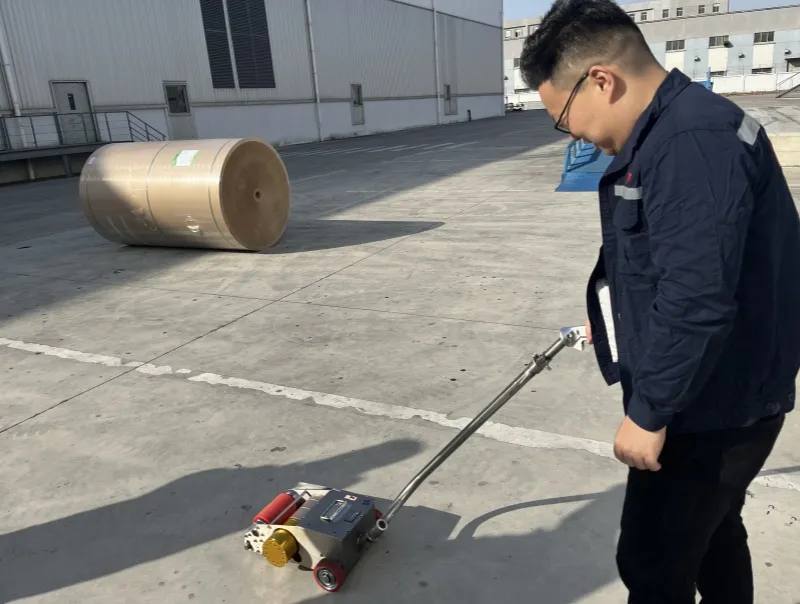

Roll Mover features lithium battery power, offering compact maneuverability while effortlessly handling 15-ton paper rolls.

Inquire Now +

Main Characteristics

Improve productivity compared with traditional manpower, the handling efficiency is increased by more than 50%.
Reduce manual handling, compared with traditional handling methods, and save labor by 1-3 people.
Infinitely variable speed handle control–speed controllable to solve the inertial displacement of the workpiece.
The handle is telescopic, and the holding direction is adjustable.
It can effortlessly move multi-ton loads, even capable of relocating small cars with ease.

Specification

Model	Roll Mover
Driving ability	15T
Running speed	Infinitely variable speed, supports forward and reverse,0.1 m/min—20m/min
Speed	chain/wheel
Reducer	Motor DC/36V ,brushless constant temperature (<68℃) ,limited power 3.5Kw ,three-stage planetary reduction, pneumatic cooling
Controller type	DC/36V Load Adaptive Rectifier Controller
Battery	Power lithium battery 36V/10Ah (optional 13Ah) LED digital display
Charger	External input 220V±10% 50Hz Output 42V 8A
Weight	38.5kg
LxWxH	415385188mm

Customized Products

We offer comprehensive customization services that cover appearance, functionality, and configuration – please feel free to share your specific requirements.
