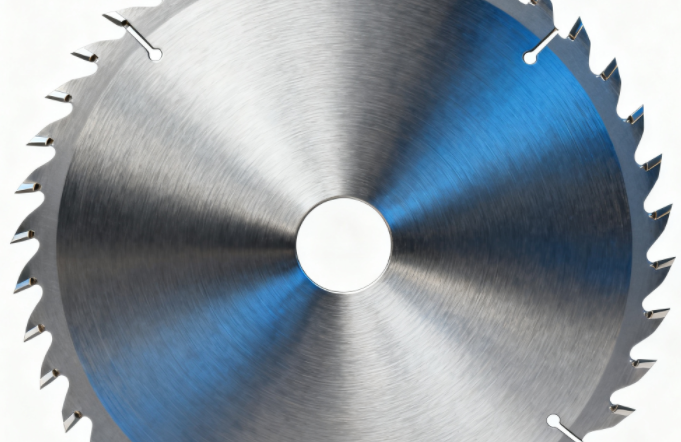

The Critical Role of Dynamic Balancing in Saw Blade Performance

1. The Fundamentals of Dynamic Balancing

Dynamic balancing addresses imbalances that occur when asaw blade's center of mass deviates from its rotational axis. This deviation generates centrifugal force during high-speed rotation, leading to vibrations that compromise cutting accuracy, surface finish, and tool lifespan. Unlike static balancing (which applies to stationary objects), dynamic balancing requires thesaw blade to be rotating, as imbalances manifest under operational conditions. Key indicators of imbalance include:

Excessive vibration: Causes irregular cuts and accelerates wear on machine components like spindle bearings.

Noise and instability: Often observed when thesaw blade accelerates from low to high speeds.

Reduced cutting precision: Imbalance leads to "misaligned biting," where the blade fails to maintain perpendicular contact with the workpiece.

2. Causes of Imbalance in Saw Blades

Imbalance arises from inconsistencies in manufacturing or material properties. Common factors include:

Material heterogeneity: Variations in base material density or thickness.

Manufacturing tolerances: Imperfections in tooth spacing, blade roundness, or weld quality during alloy tip attachment.

Geometric irregularities: Non-uniform tooth heights, uneven grinding angles, or inaccuracies in the central mounting hole.

Asymmetric design: Improperly aligned cooling slots or uneven weight distribution due to tooth geometry.

3. Balancing Methods and Technologies

Modern balancing processes combine automated measurement with precision correction. The workflow typically involves:

3.1 Measurement Systems

Dedicated balancing machines: Equipment like single-sided vertical balancers use high-sensitivity sensors to detect imbalance magnitude and phase angle. These systems often feature touchscreen interfaces, self-diagnostic functions, and permanent calibration.

In-situ testing: Some advanced systems allow balancing while thesaw blade rotates at operational speeds, completing adjustments within seconds.

3.2 Correction Techniques

Abrasive grinding: Automated grinding systems remove material from heavier sections of thesaw blade. For example, sandbelt grinders can be programmed to create shallow,扇形 (fan-shaped) grooves on the blade surface without compromising structural integrity.

Electromagnetic adjustment: Innovative systems use magnetic forces to reposition internal counterweights without physical contact, enabling real-time corrections during operation.

Laser-assisted removal: While not detailed in the sources, laser ablation is another precision method used industrially.

3.3 Automation and Efficiency

Recent patents highlight fully automated balancing devices. These systems integrate detection, grinding, and dust collection modules, guided by PLC controls. For instance, one device uses a grinding head that moves radially along a blade while thesaw blade rotates within a 120°–160° arc, ensuring precise material removal. Dust collection components maintain cleanliness during grinding.

4. Impact of Blade Design on Dynamic Balance

Blade geometry directly influences balancing requirements. Critical design factors include:

Tooth geometry: Excessive tooth height can amplify vibration, while uneven tooth spacing disrupts balance.

Blade thickness: Thicker blades generally improve stability but increase inertia, requiring more aggressive balancing.

Diameter selection: Oversized blades for small-scale cutting tasks exacerbate imbalance due to excessive rotational inertia.

5. The Consequences of Neglecting Dynamic Balancing

Unbalancedsaw blade lead to operational and economic drawbacks:

Quality issues: Vibration causes uneven cuts, rough surfaces, and dimensional inaccuracies.

Equipment damage: Accelerated wear on spindles and bearings increases maintenance costs.

Safety risks: Severe vibration may cause blade fracture, endangering operators.

Cost inefficiency: Unplanned downtime and shorter blade life raise production expenses.

6. Best Practices for Balancing Implementation

Pre-production control: Use uniform base materials and precision molds during manufacturing to minimize inherent imbalances.

Regular inspection: Implement periodic balancing checks as part of maintenance schedules, especially after blade re-sharpening.

Technology adoption: Employ balancers with features like automatic phase detection and adaptive control for high-precision applications.

Operator training: Ensure personnel understand balancing principles to avoid incorrect adjustments.

7. Future Trends and Innovations

The industry is moving toward smarter balancing solutions:

Integrated sensors: Real-time vibration monitoring systems coupled with automatic correction mechanisms.

AI-powered prediction: Algorithms that anticipate imbalance based on blade usage patterns.

Eco-friendly designs: Energy-efficient balancers with improved dust collection to meet environmental standards.

Conclusion

Dynamic balancing is not merely a corrective procedure but a foundational aspect ofsaw blade performance optimization. By adopting advanced balancing technologies and adhering to rigorous manufacturing standards, industries can achieve higher cutting precision, extended tool life, and enhanced operational safety. As blade speeds and productivity demands increase, the role of dynamic balancing will only grow more critical in ensuring efficient and reliable cutting processes.

Note: This article synthesizes technical insights from patent documents, industry reports, and engineering analyses published between 2022–2025.
