What is a Roll Slitter?

A roll slitter, also known as a slitting machine or slitter rewinder, is an industrial device used to convert large rolls of materials such as paper, film, metal, textiles, or plastics into narrower, customized rolls or strips. This process plays a vital role in manufacturing, packaging, printing, and converting industries where precision-sized rolls are needed for further production. By enabling high-speed, accurate cutting tailored to specific requirements, roll slitters help optimize material usage, minimize waste, and improve overall efficiency.

Types of Roll Slitters: Log Slitter vs. Slitter Rewinder

Roll slitters mainly come in two types, each designed for different applications:

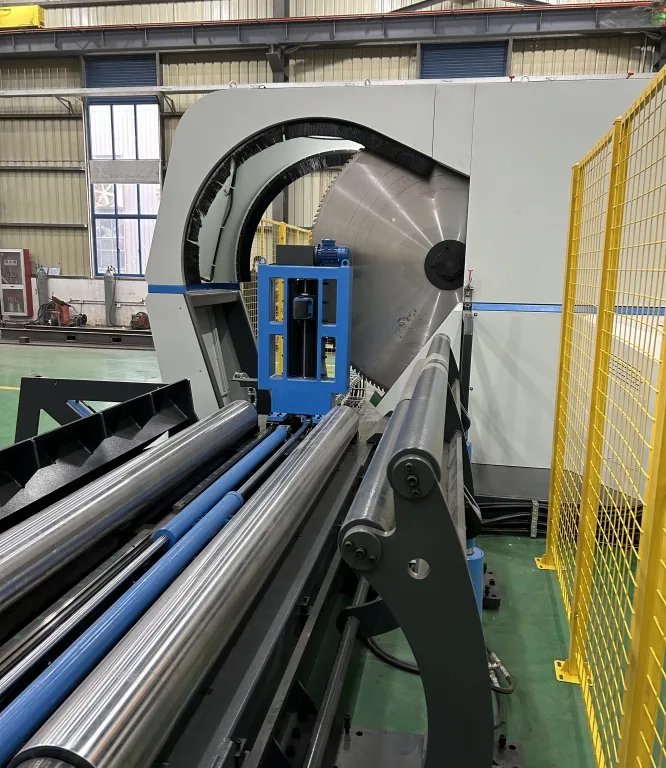

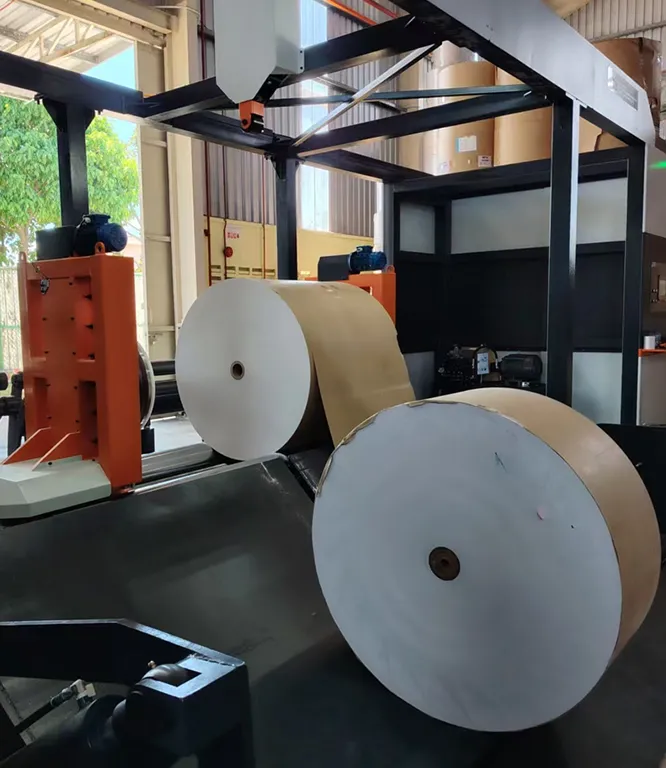

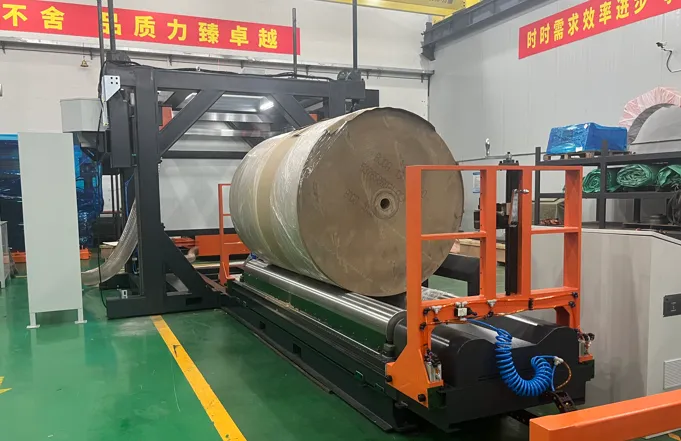

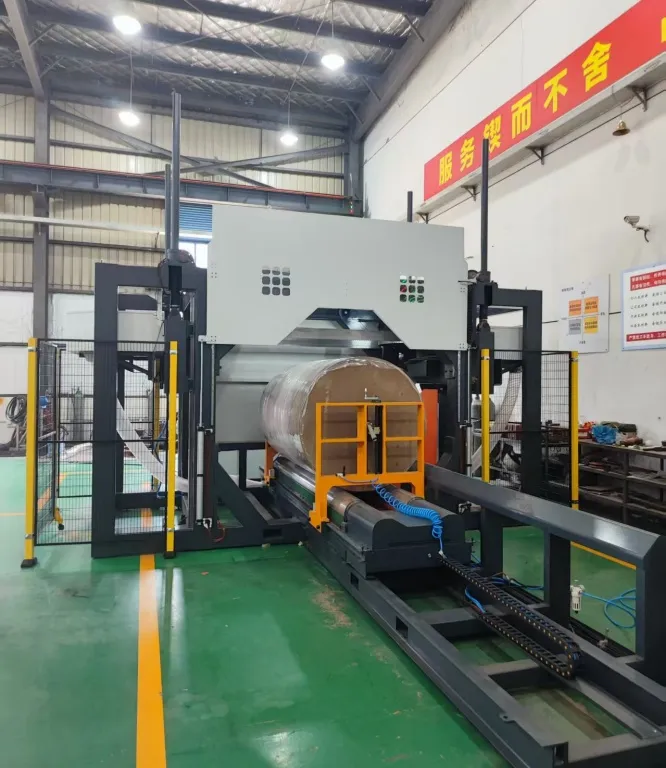

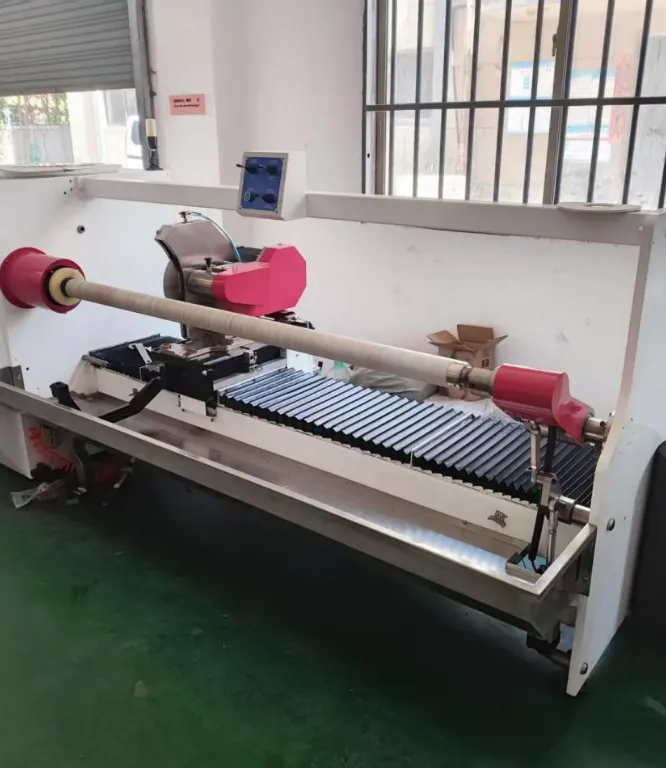

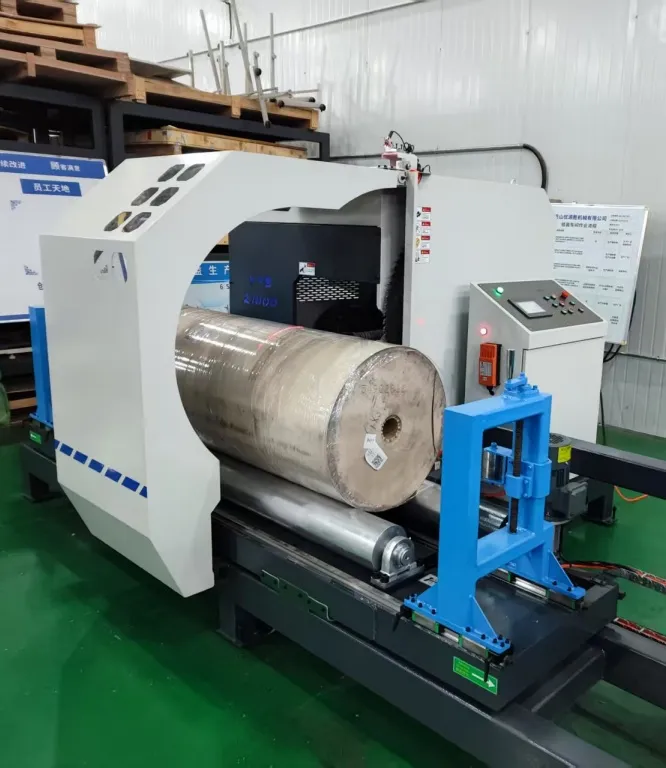

Log Slitter:

This type uses stationary blades to directly cut wide "jumbo rolls" into narrower sections without unwinding the material. The blades, which can be circular or band-saw style, slice through the entire roll in one motion, similar to cutting a log - hence the name.

Applications include rigid or thick materials like cardboard, kraft paper, paper tubes, and industrial rolls with diameters up to 1.35 meters. The main advantages are fast processing (cutting a 1.25m diameter roll in about 5 minutes), minimal setup time, and lower complexity. However, log slitters are less precise for ultra-thin materials and may produce burrs or debris.

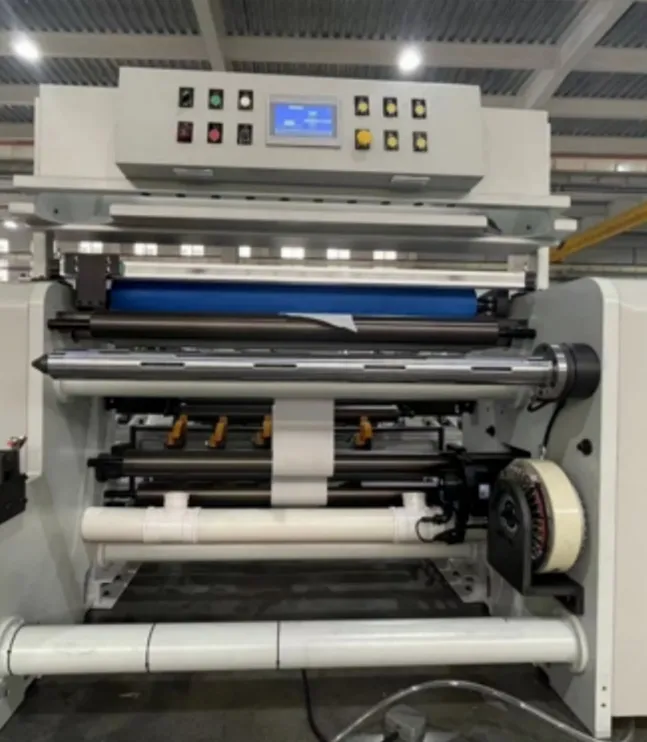

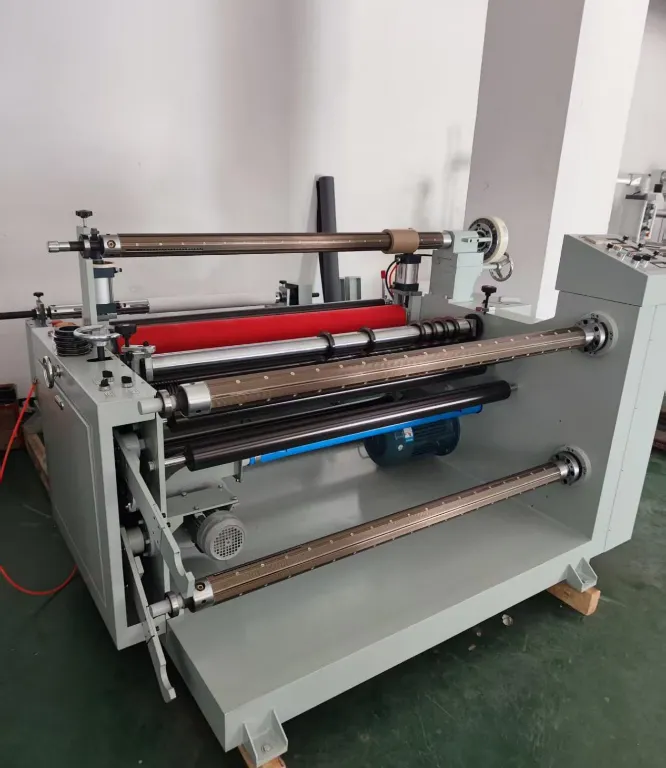

Slitter Rewinder:

This system unwinds the master roll, passes the material through precision razor or shear blades for slitting, and then rewinds the narrower strips onto new cores. It typically includes tension control, edge guidance, and automated core handling.

Essential for thin, sensitive materials like films (PET, BOPP), foils, labels, adhesive tapes, and nonwovens, slitter rewinders offer burr-free edges, handle widths down to ±0.5mm tolerance, and support speeds exceeding 300 meters per minute. The trade-offs are higher initial costs and more maintenance requirements.

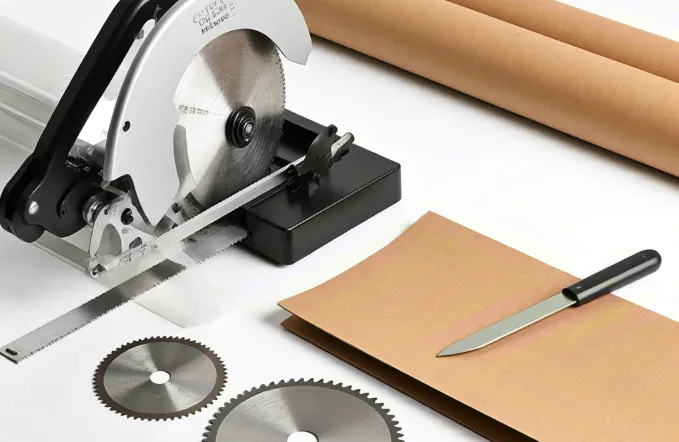

Blade Technologies: Toothed vs. Smooth Blades

Log slitters use two main blade types, each with distinct advantages:

Toothed Blades (Saw Blades):

Featuring serrated edges made of materials like tungsten steel, these blades are optimized for cutting dense, thick materials. Their strengths include high cutting force for materials like kraft paper, corrugated board, or composites up to 17mm thick, along with reduced friction and heat buildup that extends blade life. However, they generate sawdust or micro-fragments requiring post-processing and aren't suitable for thin films due to tearing risks.

Smooth Blades (Razor/Shear Blades):

With polished, toothless edges that shear materials cleanly, these blades offer zero material loss as their narrow kerf preserves 100% of substrates like films, plastics, or foils. They work best with thin, homogeneous materials such as thermal paper or PVC vinyls. Their limitations include difficulty with abrasive or rigid materials and the need for frequent sharpening.

Paper Saw King: Your Comprehensive Slitting Partner

At Paper Saw King, we specialize in engineering complete roll slitting solutions for diverse industrial needs. Our product range includes high-speed log slitters for jumbo paper rolls and precision slitter rewinders for films and foils. We offer customized machines for various materials including kraft paper, coated cardstock, nonwov and technical textiles.

Our focus on innovation brings you features like auto-retraction blades, dust-recycling systems, and PLC controls for maximum efficiency and safety. With global support capabilities, we provide expertise to optimize production workflows, whether your goal is reducing labor costs or minimizing material waste.

Contact us today to learn how our slitting solutions can enhance your production line. We're ready to help you find the perfect equipment for your specific requirements.
